Euclid Q1: MER mosaics

# Uncomment the next line to install dependencies if needed.
# !pip install numpy 'astropy>=5.3' matplotlib 'astroquery>=0.4.10' 'sep>=1.4' fsspec

import re

import numpy as np

import matplotlib.pyplot as plt
from matplotlib.patches import Ellipse

from astropy.coordinates import SkyCoord
from astropy.io import fits
from astropy.nddata import Cutout2D
from astropy.utils.data import download_file
from astropy.visualization import ImageNormalize, PercentileInterval, AsinhStretch,  ZScaleInterval, SquaredStretch
from astropy.wcs import WCS
from astropy import units as u

from astroquery.ipac.irsa import Irsa
import sep

search_radius = 10 * u.arcsec
coord = SkyCoord.from_name('HD 168151')

image_table = Irsa.query_sia(pos=(coord, search_radius), collection='euclid_DpdMerBksMosaic')

science_images = image_table[image_table['dataproduct_subtype'] == 'science']
science_images

filename = science_images[science_images['energy_bandpassname'] == 'VIS']['access_url'][0]
filesize = science_images[science_images['energy_bandpassname'] == 'VIS']['access_estsize'][0] / 1000000
print(filename)

print(f'Please note this image is {filesize} GB. With 230 Mbps internet download speed, it takes about 1 minute to download.')

science_images

tileID = science_images[science_images['energy_bandpassname'] == 'VIS']['obs_id'][0][:9]

print(f'The MER tile ID for this object is : {tileID}')

fname = download_file(filename, cache=True)
hdu_mer_irsa = fits.open(fname)
print(hdu_mer_irsa.info())

header_mer_irsa = hdu_mer_irsa[0].header

# download_path = 'data'
# hdu_mer_irsa.writeto(os.path.join(download_path, 'MER_image_VIS.fits'), overwrite=True)

header_mer_irsa

im_mer_irsa = hdu_mer_irsa[0].data

print(im_mer_irsa.shape)

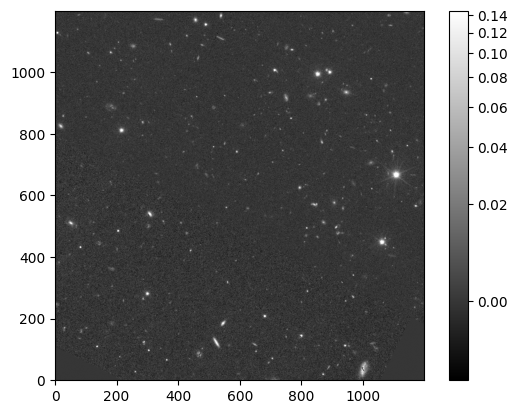

plt.imshow(im_mer_irsa[0:1200,0:1200], cmap='gray', origin='lower',
           norm=ImageNormalize(im_mer_irsa[0:1200,0:1200], interval=PercentileInterval(99.9), stretch=AsinhStretch()))
colorbar = plt.colorbar()

# # Full MER mosaic, may take a minute for python to create this image
# plt.imshow(im_mer_irsa, cmap='gray', origin='lower', norm=ImageNormalize(im_mer_irsa, interval=PercentileInterval(99.9), stretch=AsinhStretch()))
# colorbar = plt.colorbar()

urls = science_images['access_url']

urls

science_images['filters'] = science_images['instrument_name'] + "_" + science_images['energy_bandpassname']

# VIS_VIS appears in the filters, so update that filter to just say VIS
science_images['filters'][science_images['filters']== 'VIS_VIS'] = "VIS"

science_images['filters']

######################## User defined section ############################
## How large do you want the image cutout to be?
im_cutout = 1.0 * u.arcmin

## What is the center of the cutout?
## For now choosing a random location on the image
## because the star itself is saturated
ra = 273.8667
dec =  64.525

## Bright star position
# ra = 273.474451
# dec = 64.397273

coords_cutout = SkyCoord(ra, dec, unit='deg', frame='icrs')

##########################################################################

## Iterate through each filter

cutout_list = []

for url in urls:
    ## Use fsspec to interact with the fits file without downloading the full file
    hdu = fits.open(url, use_fsspec=True)
    print(f"Opened {url}")

    ## Store the header
    header = hdu[0].header

    ## Read in the cutout of the image that you want
    cutout_data = Cutout2D(hdu[0].section, position=coords_cutout, size=im_cutout, wcs=WCS(hdu[0].header))

    ## Close the file
    # hdu.close()

    ## Define a new fits file based on this smaller cutout, with accurate WCS based on the cutout size
    new_hdu = fits.PrimaryHDU(data=cutout_data.data, header=header)
    new_hdu.header.update(cutout_data.wcs.to_header())

    ## Append the cutout to the list
    cutout_list.append(new_hdu)

## Combine all cutouts into a single HDUList and display information
final_hdulist = fits.HDUList(cutout_list)
final_hdulist.info()

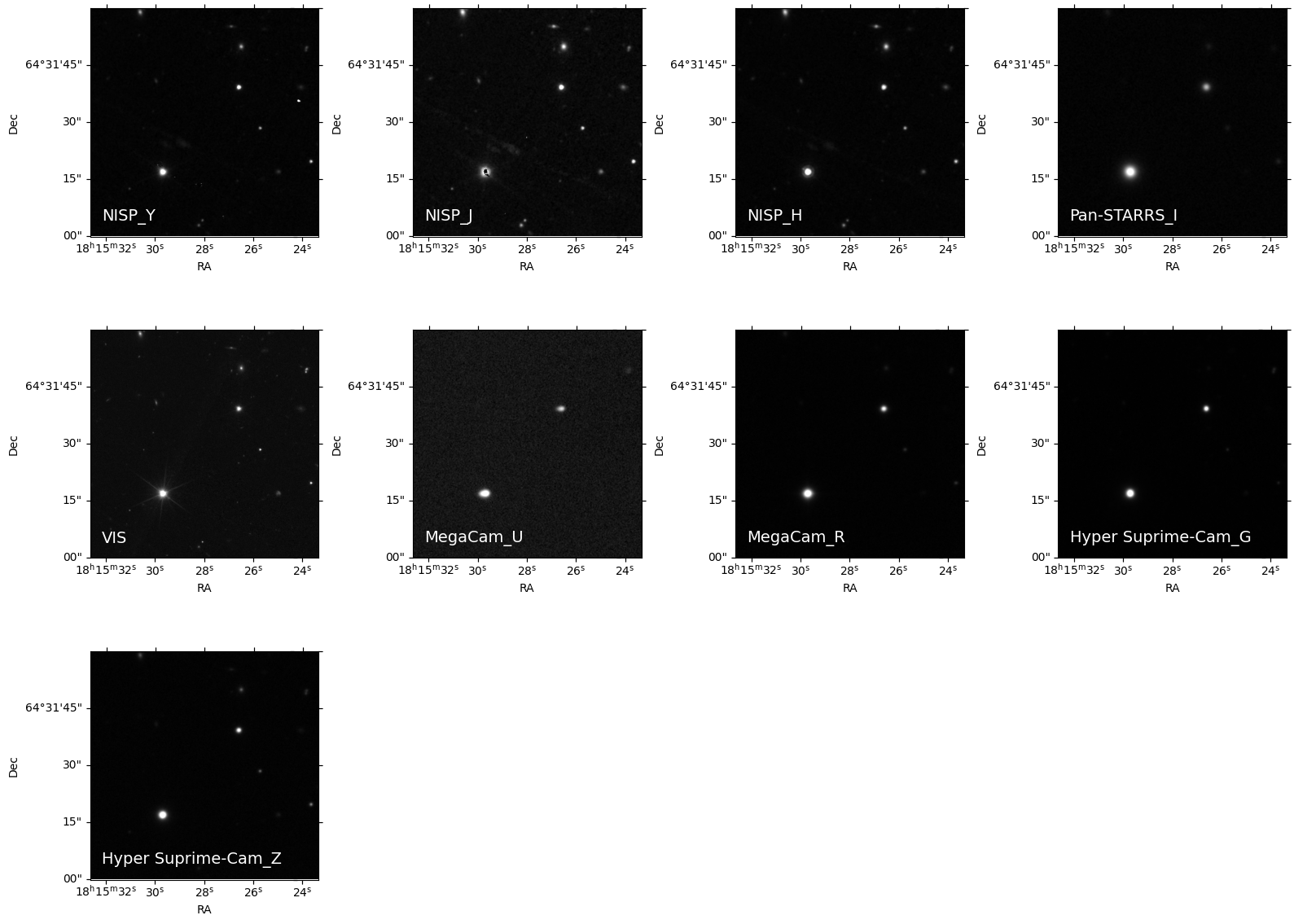

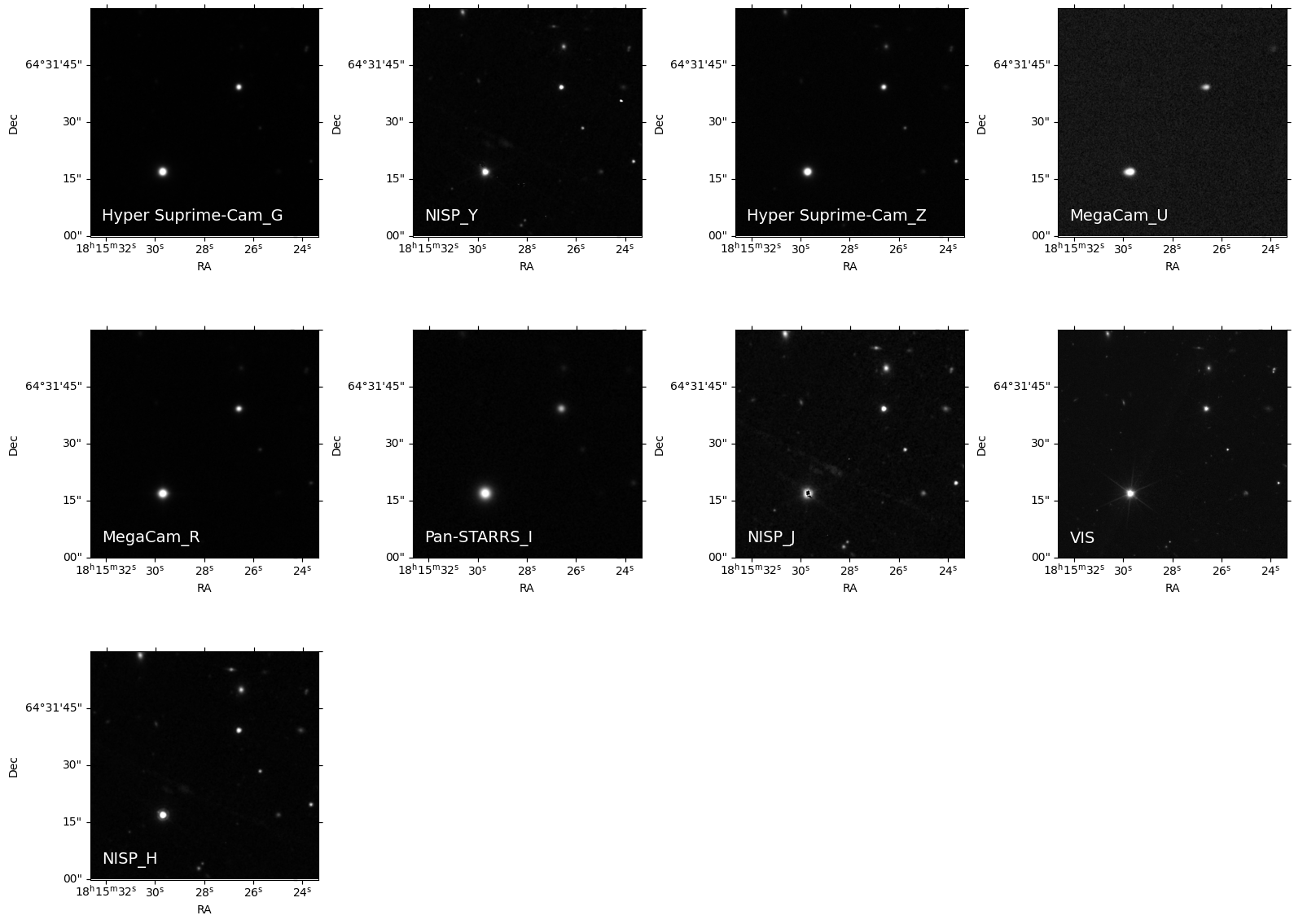

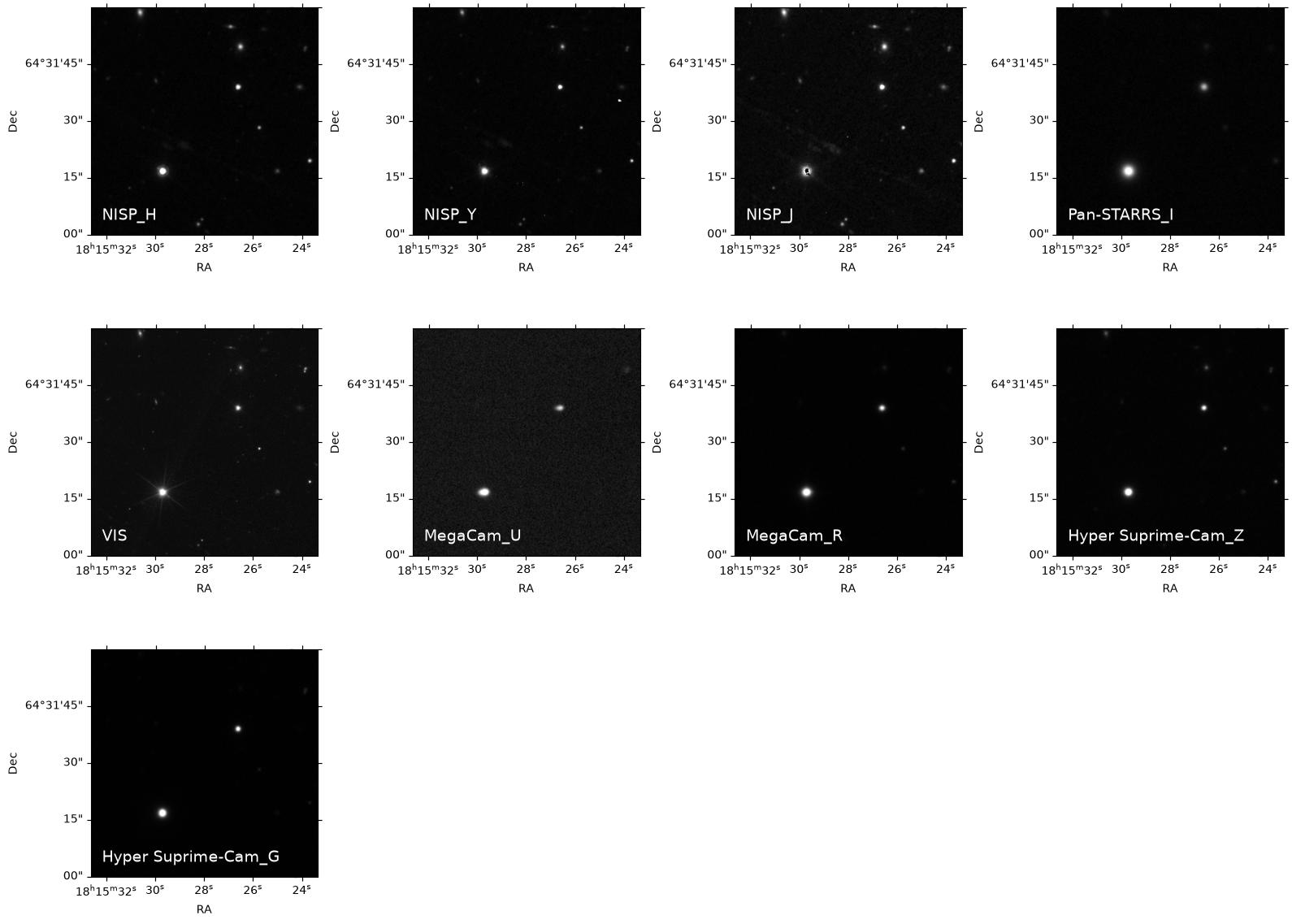

num_images = len(final_hdulist)
columns = 4
rows = -(-num_images // columns)

fig, axes = plt.subplots(rows, columns, figsize=(4 * columns, 4 * rows), subplot_kw={'projection': WCS(final_hdulist[0].header)})
axes = axes.flatten()

for idx, (ax, filt) in enumerate(zip(axes, science_images['filters'])):
    image_data = final_hdulist[idx].data
    norm = ImageNormalize(image_data, interval=PercentileInterval(99.9), stretch=AsinhStretch())
    ax.imshow(image_data, cmap='gray', origin='lower', norm=norm)
    ax.set_xlabel('RA')
    ax.set_ylabel('Dec')
    ax.text(0.05, 0.05, filt, color='white', fontsize=14, transform=ax.transAxes, va='bottom', ha='left')

## Remove empty subplots if any
for ax in axes[num_images:]:
    fig.delaxes(ax)

plt.tight_layout()
plt.show()

filt_index = np.where(science_images['filters'] == 'VIS')[0][0]

img1 = final_hdulist[filt_index].data

img2 = img1.byteswap().view(img1.dtype.newbyteorder())
c_contiguous_data = np.array(img2, dtype=np.float32)

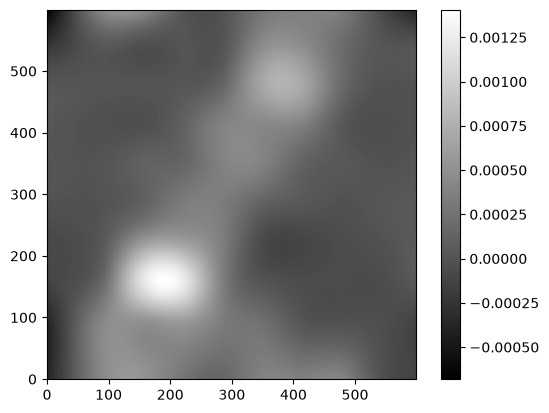

bkg = sep.Background(c_contiguous_data)

bkg_image = bkg.back()

plt.imshow(bkg_image, interpolation='nearest', cmap='gray', origin='lower')
plt.colorbar()

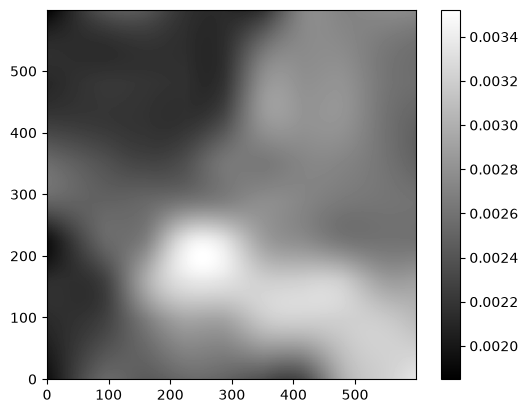

bkg_rms = bkg.rms()

plt.imshow(bkg_rms, interpolation='nearest', cmap='gray', origin='lower')
plt.colorbar();

data_sub = img2 - bkg

######################## User defined section ############################

## Sigma threshold to consider this a detection above the global RMS
threshold= 3

## Minimum number of pixels required for an object. Default is 5.
minarea_0=2

## Minimum contrast ratio used for object deblending. Default is 0.005. To entirely disable deblending, set to 1.0.
deblend_cont_0= 0.005

flux_threshold= 0.01
##########################################################################


sources = sep.extract(data_sub, threshold, err=bkg.globalrms, minarea=minarea_0, deblend_cont=deblend_cont_0)
sources_thr = sources[sources['flux'] > flux_threshold]
print("Found", len(sources_thr), "objects above flux threshold")

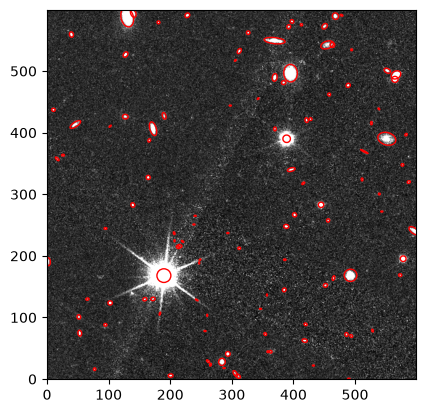

fig, ax = plt.subplots()
m, s = np.mean(data_sub), np.std(data_sub)
im = ax.imshow(data_sub, cmap='gray', origin='lower', norm=ImageNormalize(img2, interval=ZScaleInterval(), stretch=SquaredStretch()))

## Plot an ellipse for each object detected with sep

for i in range(len(sources_thr)):
    e = Ellipse(xy=(sources_thr['x'][i], sources_thr['y'][i]),
                width=6*sources_thr['a'][i],
                height=6*sources_thr['b'][i],
                angle=sources_thr['theta'][i] * 180. / np.pi)
    e.set_facecolor('none')
    e.set_edgecolor('red')
    ax.add_artist(e)
