Searching for 2MASS All-Sky Atlas Images#
This notebook tutorial demonstrates the process of querying IRSA’s Simple Image Access (SIA) service for the 2MASS All-Sky Atlas, making a cutout image (thumbnail), and displaying the cutout.
Learning Goals#
By the end of this tutorial, you will:
Learn how to search the NASA Astronomical Virtual Observatory Directory web portal for a service that provides access to IRSA’s 2MASS images.
Use the Python pyvo package to identify which of IRSA’s 2MASS images cover a specified coordinate.
Download one of the identified images.
Create and display a cutout of the downloaded image.
Introduction#
The Two Micron All Sky Survey (2MASS) project uniformly scanned the entire sky in three near-infrared bands to detect and characterize point sources brighter than about 1 mJy in each band, with signal-to-noise ratio (SNR) greater than 10. More information about 2MASS can be found at:
https://irsa.ipac.caltech.edu/Missions/2mass.html
The NASA/IPAC Infrared Science Archive (IRSA) at Caltech is the archive for 2MASS images and catalogs. The 2MASS images that are the subject of this tutorial are made accessible via the International Virtual Observatory Alliance (IVOA) Simple Image Access (SIA) protocol. IRSA’s 2MASS SIA service is registered in the NASA Astronomical Virtual Observatory (NAVO) Directory. Based on the registered information, the Python package pyvo can be used to query the 2MASS SIA service for a list of images that meet specified criteria, and standard Python libraries can be used to download and manipulate the images. Other datasets at IRSA are available through other SIA services:
https://irsa.ipac.caltech.edu/docs/program_interface/api_images.html
Imports#
pyvo for querying IRSA’s 2MASS SIA service
astropy.coordinates for defining coordinates
astropy.nddata for creating an image cutout
astropy.wcs for interpreting the World Coordinate System header keywords of a fits file
astropy.units for attaching units to numbers passed to the SIA service
matplotlib.pyplot for plotting
astropy.utils.data for downloading files
astropy.io to manipulate FITS files
# Uncomment the next line to install dependencies if needed.
# !pip install matplotlib astropy pyvo
import pyvo as vo
from astropy.coordinates import SkyCoord
from astropy.nddata import Cutout2D
from astropy.wcs import WCS
import astropy.units as u
import matplotlib.pyplot as plt
from astropy.utils.data import download_file
from astropy.io import fits
Section 1 - Setup#
Set images to display in the notebook
%matplotlib inline
Define coordinates of a bright star
ra = 314.30417
dec = 77.595559
pos = SkyCoord(ra=ra, dec=dec, unit='deg')
Section 2 - Lookup and define a service for 2MASS images#
Start at STScI VAO Registry at https://vao.stsci.edu/keyword-search/
Limit by Publisher “NASA/IPAC Infrared Science Archive” and Capability Type “Simple Image Access Protocol” then search on “2MASS”
Locate the SIA URL https://irsa.ipac.caltech.edu/cgi-bin/2MASS/IM/nph-im_sia?type=at&ds=asky&
twomass_service = vo.dal.SIAService("https://irsa.ipac.caltech.edu/cgi-bin/2MASS/IM/nph-im_sia?type=at&ds=asky&")
Section 3 - Search the service#
Search for images covering within 1 arcsecond of the star
im_table = twomass_service.search(pos=pos, size=1.0*u.arcsec)
Examine the table of images that is returned
im_table.to_table()
name | download | center_ra | center_dec | naxes | naxis | scale | format | crpix | crval | crota2 | band | bref | bhi | blo | pers_art | glint_art | type | dataset | pixflags | id | scntr | date | hem | scan | image | ut_date | coadd_key | seesh | magzp | msnr10 | bin |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
deg | deg | deg | deg | deg | meters | meters | meters | arcseconds | |||||||||||||||||||||||
object | object | float64 | float64 | int32 | object | object | object | object | object | float64 | object | float64 | float64 | float64 | object | object | object | object | object | object | object | object | object | int32 | int32 | object | int32 | float64 | float64 | float64 | int32 |
All-Sky Release Survey J-Band Atlas Image: 000616 n 060 0256 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im?ds=asky&atdir=/ti08&dh=000616n&scan=060&name=ji0600256.fits | 314.5216579 | 77.65369905 | 2 | [512 1024] | [-0.0002777777845 0.0002777777845] | image/fits | [256.5 512.5] | [314.5216579 77.65369905] | -0.03194277641 | J | 1.235e-06 | 1.404e-06 | 1.066e-06 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=pers&ds=asky&date=000616&hem=n&scan=060 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=glint&ds=asky&date=000616&hem=n&scan=060 | A | asky | CZ | null | null | 000616 | n | 60 | 256 | 000616 | 1388256 | 2.63965 | 20.8408 | 16.567 | 201030300 |
All-Sky Release Survey J-Band Atlas Image: 000616 n 060 0256 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im_key?ds=asky&key=1388256&band=J | 314.5216579 | 77.65369905 | 2 | [512 1024] | [-0.0002777777845 0.0002777777845] | text/html | [256.5 512.5] | [314.5216579 77.65369905] | -0.03194277641 | J | 1.235e-06 | 1.404e-06 | 1.066e-06 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=pers&ds=asky&date=000616&hem=n&scan=060 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=glint&ds=asky&date=000616&hem=n&scan=060 | A | asky | CZ | null | null | 000616 | n | 60 | 256 | 000616 | 1388256 | 2.63965 | 20.8408 | 16.567 | 201030300 |
All-Sky Release Survey H-Band Atlas Image: 000616 n 060 0256 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im?ds=asky&atdir=/ti08&dh=000616n&scan=060&name=hi0600256.fits | 314.5216579 | 77.65369905 | 2 | [512 1024] | [-0.0002777777845 0.0002777777845] | image/fits | [256.5 512.5] | [314.5216579 77.65369905] | -0.03194277641 | H | 1.662e-06 | 1.924e-06 | 1.4e-06 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=pers&ds=asky&date=000616&hem=n&scan=060 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=glint&ds=asky&date=000616&hem=n&scan=060 | A | asky | CZ | null | null | 000616 | n | 60 | 256 | 000616 | 1388256 | 2.6083 | 20.3352 | 15.476 | 201030300 |
All-Sky Release Survey H-Band Atlas Image: 000616 n 060 0256 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im_key?ds=asky&key=1388256&band=H | 314.5216579 | 77.65369905 | 2 | [512 1024] | [-0.0002777777845 0.0002777777845] | text/html | [256.5 512.5] | [314.5216579 77.65369905] | -0.03194277641 | H | 1.662e-06 | 1.924e-06 | 1.4e-06 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=pers&ds=asky&date=000616&hem=n&scan=060 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=glint&ds=asky&date=000616&hem=n&scan=060 | A | asky | CZ | null | null | 000616 | n | 60 | 256 | 000616 | 1388256 | 2.6083 | 20.3352 | 15.476 | 201030300 |
All-Sky Release Survey K-Band Atlas Image: 000616 n 060 0256 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im?ds=asky&atdir=/ti08&dh=000616n&scan=060&name=ki0600256.fits | 314.5216579 | 77.65369905 | 2 | [512 1024] | [-0.0002777777845 0.0002777777845] | image/fits | [256.5 512.5] | [314.5216579 77.65369905] | -0.03194277641 | K | 2.159e-06 | 2.434e-06 | 1.884e-06 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=pers&ds=asky&date=000616&hem=n&scan=060 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=glint&ds=asky&date=000616&hem=n&scan=060 | A | asky | CZ | null | null | 000616 | n | 60 | 256 | 000616 | 1388256 | 2.70235 | 20.0396 | 14.709 | 201030300 |
All-Sky Release Survey K-Band Atlas Image: 000616 n 060 0256 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im_key?ds=asky&key=1388256&band=K | 314.5216579 | 77.65369905 | 2 | [512 1024] | [-0.0002777777845 0.0002777777845] | text/html | [256.5 512.5] | [314.5216579 77.65369905] | -0.03194277641 | K | 2.159e-06 | 2.434e-06 | 1.884e-06 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=pers&ds=asky&date=000616&hem=n&scan=060 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=glint&ds=asky&date=000616&hem=n&scan=060 | A | asky | CZ | null | null | 000616 | n | 60 | 256 | 000616 | 1388256 | 2.70235 | 20.0396 | 14.709 | 201030300 |
All-Sky Release Survey J-Band Atlas Image: 001129 n 019 0256 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im?ds=asky&atdir=/ti08&dh=001129n&scan=019&name=ji0190256.fits | 314.1043524 | 77.65121426 | 2 | [512 1024] | [-0.0002777777845 0.0002777777845] | image/fits | [256.5 512.5] | [314.1043524 77.65121426] | 0.04799351843 | J | 1.235e-06 | 1.404e-06 | 1.066e-06 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=pers&ds=asky&date=001129&hem=n&scan=019 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=glint&ds=asky&date=001129&hem=n&scan=019 | A | asky | CZ | null | null | 001129 | n | 19 | 256 | 001129 | 1528372 | 2.671 | 20.9334 | 16.406 | 201030220 |
All-Sky Release Survey J-Band Atlas Image: 001129 n 019 0256 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im_key?ds=asky&key=1528372&band=J | 314.1043524 | 77.65121426 | 2 | [512 1024] | [-0.0002777777845 0.0002777777845] | text/html | [256.5 512.5] | [314.1043524 77.65121426] | 0.04799351843 | J | 1.235e-06 | 1.404e-06 | 1.066e-06 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=pers&ds=asky&date=001129&hem=n&scan=019 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=glint&ds=asky&date=001129&hem=n&scan=019 | A | asky | CZ | null | null | 001129 | n | 19 | 256 | 001129 | 1528372 | 2.671 | 20.9334 | 16.406 | 201030220 |
All-Sky Release Survey H-Band Atlas Image: 001129 n 019 0256 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im?ds=asky&atdir=/ti08&dh=001129n&scan=019&name=hi0190256.fits | 314.1043524 | 77.65121426 | 2 | [512 1024] | [-0.0002777777845 0.0002777777845] | image/fits | [256.5 512.5] | [314.1043524 77.65121426] | 0.04799351843 | H | 1.662e-06 | 1.924e-06 | 1.4e-06 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=pers&ds=asky&date=001129&hem=n&scan=019 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=glint&ds=asky&date=001129&hem=n&scan=019 | A | asky | CZ | null | null | 001129 | n | 19 | 256 | 001129 | 1528372 | 2.6083 | 20.3395 | 15.132 | 201030220 |
All-Sky Release Survey H-Band Atlas Image: 001129 n 019 0256 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im_key?ds=asky&key=1528372&band=H | 314.1043524 | 77.65121426 | 2 | [512 1024] | [-0.0002777777845 0.0002777777845] | text/html | [256.5 512.5] | [314.1043524 77.65121426] | 0.04799351843 | H | 1.662e-06 | 1.924e-06 | 1.4e-06 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=pers&ds=asky&date=001129&hem=n&scan=019 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=glint&ds=asky&date=001129&hem=n&scan=019 | A | asky | CZ | null | null | 001129 | n | 19 | 256 | 001129 | 1528372 | 2.6083 | 20.3395 | 15.132 | 201030220 |
All-Sky Release Survey K-Band Atlas Image: 001129 n 019 0256 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im?ds=asky&atdir=/ti08&dh=001129n&scan=019&name=ki0190256.fits | 314.1043524 | 77.65121426 | 2 | [512 1024] | [-0.0002777777845 0.0002777777845] | image/fits | [256.5 512.5] | [314.1043524 77.65121426] | 0.04799351843 | K | 2.159e-06 | 2.434e-06 | 1.884e-06 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=pers&ds=asky&date=001129&hem=n&scan=019 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=glint&ds=asky&date=001129&hem=n&scan=019 | A | asky | CZ | null | null | 001129 | n | 19 | 256 | 001129 | 1528372 | 2.63965 | 20.0656 | 14.862 | 201030220 |
All-Sky Release Survey K-Band Atlas Image: 001129 n 019 0256 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im_key?ds=asky&key=1528372&band=K | 314.1043524 | 77.65121426 | 2 | [512 1024] | [-0.0002777777845 0.0002777777845] | text/html | [256.5 512.5] | [314.1043524 77.65121426] | 0.04799351843 | K | 2.159e-06 | 2.434e-06 | 1.884e-06 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=pers&ds=asky&date=001129&hem=n&scan=019 | https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-art?arttype=glint&ds=asky&date=001129&hem=n&scan=019 | A | asky | CZ | null | null | 001129 | n | 19 | 256 | 001129 | 1528372 | 2.63965 | 20.0656 | 14.862 | 201030220 |
Section 4 - Locate and download an image of interest#
Locate the first H-band image and display its URL
for i in range(len(im_table)):
if im_table[i]['band'] == 'H':
break
print(im_table[i].getdataurl())
https://irsa.ipac.caltech.edu:443/cgi-bin/2MASS/IM/nph-im?ds=asky&atdir=/ti08&dh=000616n&scan=060&name=hi0600256.fits
Download the image and open it in Astropy
fname = download_file(im_table[i].getdataurl(), cache=True)
image1 = fits.open(fname)
Section 5 - Extract a cutout and plot it#
wcs = WCS(image1[0].header)
cutout = Cutout2D(image1[0].data, pos, (60, 60), wcs=wcs)
wcs = cutout.wcs

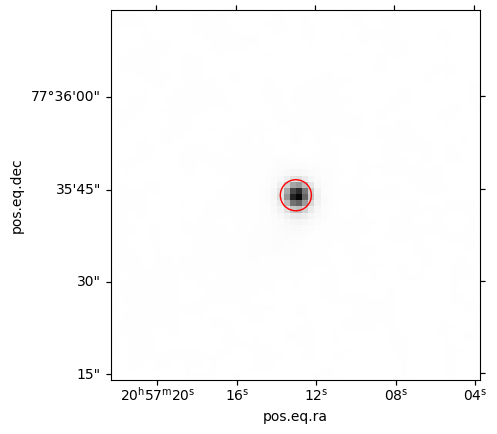

fig = plt.figure()
ax = fig.add_subplot(1, 1, 1, projection=wcs)
ax.imshow(cutout.data, cmap='gray_r', origin='lower',
vmax = 1000)
ax.scatter(ra, dec, transform=ax.get_transform('fk5'), s=500, edgecolor='red', facecolor='none')
<matplotlib.collections.PathCollection at 0x7f3bcb169090>
Exercise#
Repeat the steps above to retrieve a cutout from the AllWISE Atlas images
About this notebook#
Author: David Shupe, IRSA Scientist, and the IRSA Science Team
Updated On: 2023-02-16
Contact: irsasupport@ipac.caltech.edu or https://jira.ipac.caltech.edu/irsasupport
